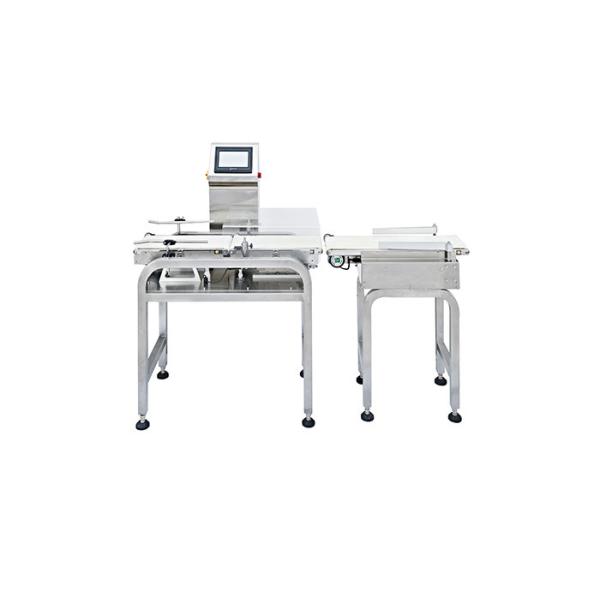

Intelligent 1000g Check Weigher Machine For Sorting Unqualified Products
The check weigher is used to detect whether the weight of a single product is consistent with the set target, and the substandard products are automatically rejected by the sorting device. The check weigher has a variety of models for customers to choose from, and there are many types of rejection methods, including rocker rejection, pneumatic push rod rejection, air blow rejection, and slip rejection.
Features
1. Intelligent construction, auto program setting for easy operation.
2. Production records in details.
3. Quick Release design
4. PLC control system with industry touch screen panel.
Technical specification
| Model | JW-C200 | JW-C1000 | JW-C2000 | JW-C3000 | JW-C6000 |
| Identify Code | C200-2-1 | C1000-1-1 | C2000-1-1 | C3000-1-1 | C6000-1-1 |
| Weighing Range | 5-200g | 10-1000g | 10-2000g | 10-3000g | 10-6000g |
| Accuracy | XIII(1) | XIII(1) | XIII(1) | XIII(1) | XIII(1) |
| Max.Belt Speed | 55m/min | 52m/min | 52m/min | 40m/min | 40m/min |
| Max.Speed | 100PCS | 80PCS | 80PCS | 50PCS | 40PCS |
| Belt Size(mm) | 350(L)x150(W) | 450(L)x220(W) | 450(L)x300(W) | 650(L)x400(W) | 650(L)x440(W) |
| Control Panel | 7” Touch Screen |
| Reject Method | Air blowing | Air blowing/Air-reject/Pneumatic pusher/Slide type | Pneumatic pusher/Slide type |
| Power Requirement | 220V/400W/50/60Hz/2A | 220V/400W/50/60Hz/2A | 220V/400W/50/60Hz/2A | 220V/600W/50/60Hz/3A | 220V/600W/50/60Hz/3A |
| Packing Dimension(mm) | 1250(L)x570(W)x1150(H) | 980(L)x800(W)x1290(H) | 980(L)x860(W)x1290(H) | 1600(L)x950(W)x1490(H) | 1600(L)x950(W)x1490(H) |
| Gross Weight | 100Kg | 180Kg | 190Kg | 260Kg | 260Kg |
Application
It is used to check whether the single bag weight is conformed to the preset weight or not and auto remove the unqualified products by the rejection device
FAQ
Q1: How to know which one packing machine is suitable for us?
You can first tell business representatives which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.
Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions but also machine videos for reference learning.
Q3: Why we should choose your company?
We have many years of industrial production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.
Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process.
Q5: What's your payment way?
T/T by our bank account directly.
Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multi-head weigher, For the large-scale machine, it takes longer. Warranty:2years(Electric accessories) and free lifetime maintenance.
If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem
Product customization
A. We have a technical team with a rapid response for special projects to meet the different requirements for customers.
B.10 years of experience in product customization, rich practical application of industry experience
C. According to the actual situation of enterprises, research production characteristics to make a comprehensive assessment of planning programs with high adaptability.
